BBT 2" Cast Iron High Pressure Diesel Water Pump – 10HP Electric Start

Heavy-Duty Cast Iron. Built for Serious Pumping Applications.

When water needs to travel further, higher or under greater pressure, choosing the right pump makes all the difference.

The BBT 2" High Pressure Diesel Water Pump has been engineered for Australian farmers, contractors and rural property owners who demand dependable performance in challenging conditions.

Powered by a reliable 10HP electric start diesel engine and featuring a heavy-duty cast iron pump housing and cast iron impeller, this pump delivers the durability, reliability and pressure required for demanding applications including firefighting, irrigation, elevated tank filling and long-distance water transfer.

Built to work hard. Built to last.

Why Choose the BBT High Pressure Pump?

✔ Heavy-Duty Cast Iron Pump Housing & Impeller

✔ High Pressure Performance

✔ Reliable 10HP Diesel Engine

✔ Electric Start Convenience

✔ Built for Australian Farms & Rural Properties

Heavy-Duty Cast Iron Construction

Quality starts with the materials.

The BBT High Pressure Pump features both a cast iron pump housing and cast iron impeller, delivering the strength and durability expected from professional-grade equipment.

For Australian farmers and contractors, cast iron has always represented reliability—and for good reason. It offers excellent resistance to wear, vibration and continuous operation, making it the preferred choice for demanding pumping applications.

Benefits

Heavy-duty cast iron pump housing
Heavy-duty cast iron impeller
Outstanding wear resistance
Designed for continuous operation
Excellent vibration resistance
Long service life
Built for demanding Australian conditions

High Pressure Performance When It Matters

Unlike high-volume transfer pumps, this model has been engineered to generate the pressure required when water needs to travel long distances or reach higher elevations.

Perfect for:

Firefighting
High-pressure irrigation
Elevated water tanks
Long-distance water transfer
Rural properties
Livestock watering
Orchards
Vineyards

If pressure is your priority, this is the right pump for the job.

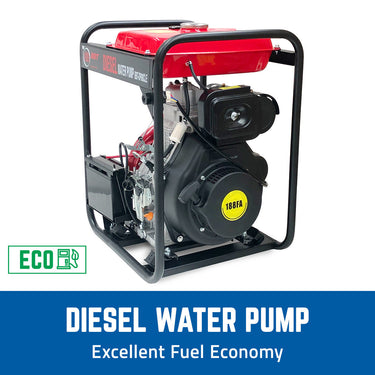

Reliable 10HP Diesel Power

The powerful 10HP diesel engine delivers excellent torque, outstanding fuel economy and dependable performance in demanding rural environments.

For farms already operating tractors, generators and other diesel-powered equipment, using one fuel across multiple machines simplifies refuelling and day-to-day operation.

Diesel-powered pumps are also a preferred choice for many firefighting applications. Diesel fuel has a significantly higher flash point than petrol, making it less likely to ignite if exposed to external heat sources and providing an added level of confidence during emergency situations.

Features

Reliable 10HP diesel engine
Electric start with recoil backup
Fuel-efficient operation
Long running time
Bio Diesel compatible
Ideal for rural properties
Excellent choice for firefighting applications

Electric Start Convenience

Simply turn the key and get to work.

The electric start system makes starting quick and effortless, reducing operator fatigue and making the pump easier to operate throughout the day.

Combined with the integrated fuel shut-off system, operation is simple, reliable and professional.

Designed for Australian Rural Properties

Whether you're protecting your property during bushfire season, supplying irrigation systems or transferring water between dams and tanks, the BBT High Pressure Pump has been built to perform.

Its robust cast iron construction, dependable diesel engine and high-pressure performance make it an excellent investment for customers looking for equipment that will continue working year after year.

Perfect For

Firefighting
High-pressure irrigation
Rural properties
Water tank filling
Long-distance water transfer
Livestock watering
Orchards
Vineyards
Civil works
Contractors

Why Buy From Bigger Boyz Toyz?

Every BBT Water Pump is backed by:

Australia-wide delivery
Genuine spare parts
Experienced technical support
Fast dispatch
Ongoing after-sales support

Built to keep Australian properties moving.

Technical Specifications

Specification	Details
Engine	186FA Direct Injection Diesel Engine
Rated Power	10HP @ 3600 RPM
Starting System	Electric Start + Recoil Backup
Fuel Tank Capacity	12.5 Litres
Engine Oil Capacity	1.65L (SAE30)
Pump Type	High Pressure Self-Priming
Pump Housing	Heavy-Duty Cast Iron
Impeller	Heavy-Duty Cast Iron
Suction Port	2" (50mm)
Discharge Port	2" (50mm)
Maximum Flow Rate	35,000L/h (583L/min)
Maximum Head	92 metres
Maximum Suction Lift	8 metres
Self-Priming Time	180 seconds (at 4m suction lift)
Impeller Diameter	198mm
Bore × Stroke	86 × 72mm
Compression Ratio	19.5:1
Fuel Type	Diesel (Bio Diesel Compatible)
Net Weight	78kg
Dimensions (L × W × H)	570 × 495 × 720mm

Frequently Asked Questions

What's the difference between the 2", 3" and 4" models?

The 2" and 3" models are designed for high-pressure applications where water needs to travel long distances or reach higher elevations. The 4" model is a high-volume transfer pump, designed to move the greatest possible amount of water in the shortest amount of time. It's the ideal choice for dam transfers, irrigation and large-scale water movement.

Why is cast iron important?

The pump housing and impeller are the hardest-working parts of any water pump. Cast iron offers exceptional durability, wear resistance and long service life, making it the preferred material for professional agricultural and firefighting pumps.

Why choose a diesel water pump?

Diesel engines deliver excellent torque, fuel economy and long operating times. They also simplify fuel management on farms where other machinery already runs on diesel. In addition, diesel fuel's higher flash point makes diesel-powered pumps a popular choice for many rural firefighting applications.

Is this pump suitable for firefighting?

Yes. The BBT High Pressure Diesel Water Pump has been designed for high-pressure water delivery, making it suitable for firefighting water supply, provided the complete system—including hoses, fittings and nozzles—is correctly selected for the intended application
