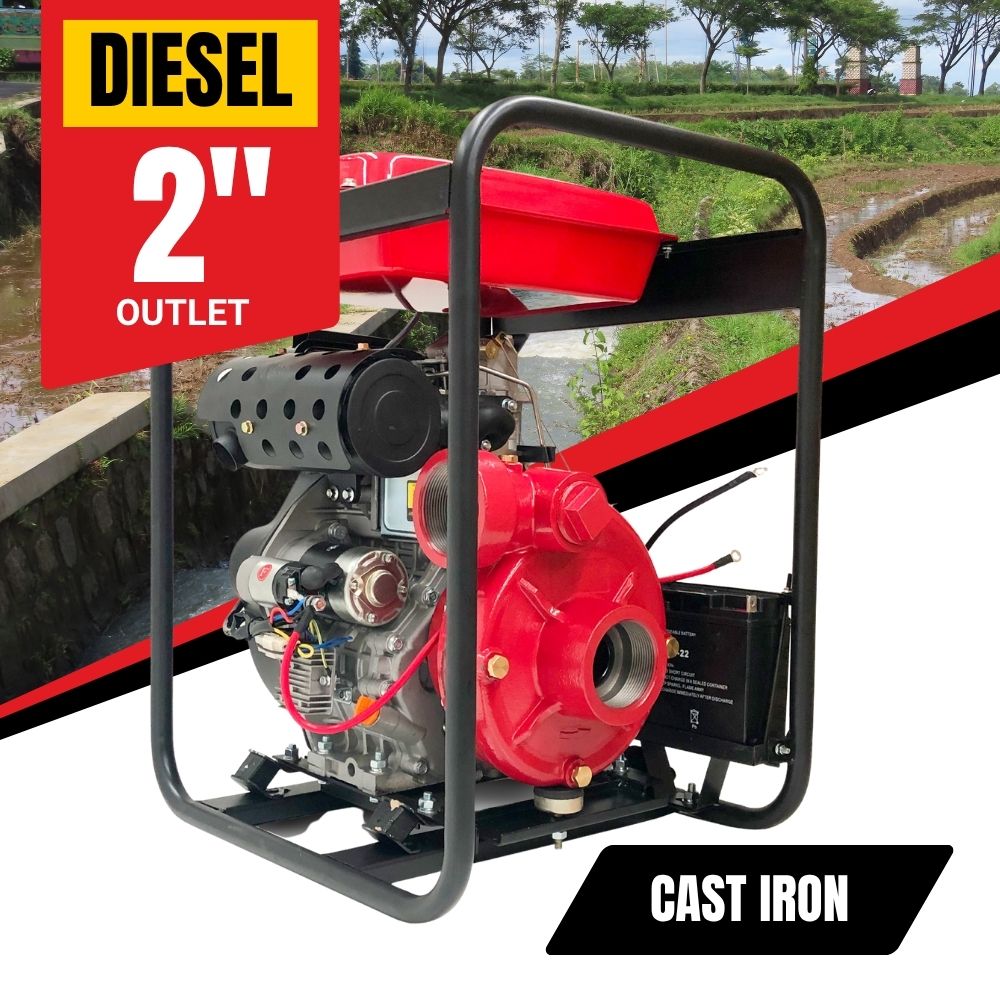

BBT 2" Diesel High Pressure Cast Iron Water Pump - 10HP Electric Start
BBT 2" Diesel High Pressure Cast Iron Water Pump - 10HP Electric Start
$1,599.00
$1,399.00
/

Description
BBT 2" Diesel High Pressure Cast Iron Water Pump – 10HP Electric Start + Fuel Solenoid Shutdown
Engineered for Firefighting, Rural Water Transfer, and High-Pressure Demands – Backed by a 2-Year Warranty
When precision, power, and portability matter, the BBT 2" Diesel High Pressure Water Pump delivers. Purpose-built for challenging tasks like fire protection, long-distance irrigation, water tank filling, and high-head rural applications, this compact yet rugged unit packs serious performance into a smart, transportable package.
Powered by a robust 10HP 186FA Diesel Engine, this model features Electric Start with Fuel Solenoid Shut-Off, giving you full ignition control directly from the key switch—no more manually choking fuel lines to shut down.
Despite its smaller 2” inlet/outlet, it delivers 35,000 litres per hour (583L/min) and lifts water to an outstanding 92 metres, all while being more fuel-efficient and easier to move than larger, bulkier pumps.
✅ Key Features:
-
High Pressure Diesel Pump – Ideal for Firefighting & Long-Distance Water Transfer
-
10HP 186FA Diesel Engine – Proven durability and high torque under load
-
Electric Start + Recoil Backup – Includes FREE Battery
-
Fuel Solenoid Shutdown – Engine turns off via key ignition (no manual valve)
-
Cast Iron Impeller & Volute – Built tough to handle abrasive environments
-
Compact & Efficient 2” Inlet/Outlet – Perfect for targeted high-pressure jobs
-
Massive 92m Max Head – Reach distant tanks, paddocks, or elevated terrain
-
Flow Rate: 35,000 LPH – Keeps up with demanding commercial use
-
Heavy-Duty Steel Frame – Stability and protection during rough handling
-
Decompression Valve – Easy pull starts when needed
-
Extended Fuel Tank (12.5L) – Get more done between refills
-
Compatible with Bio-Diesel – Cleaner, sustainable operation
-
All Spare Parts Available – From filters to rebuild kits
🔧 Specifications:
Specification | Details |
---|---|
Engine | 186FA Direct Injected Diesel |
Rated Power | 10HP (3600 RPM) |
Starting System | Electric Start + Recoil |
Fuel Tank Capacity | 12.5L |
Oil Capacity | 1.65L (SAE30) |
Suction Port Diameter | 2” (50mm) |
Discharge Port Diameter | 2” (50mm) |
Flow Rate | 35,000 L/h (583 L/min) |
Max Head (Lift) | 92 metres |
Max Suction Head | 8 metres |
Self-Priming Time | 180s (at 4m) |
Impeller Diameter | 198mm |
Bore x Stroke | 86 x 72mm |
Compression Ratio | 19.5:1 |
Pump Material | Cast Iron |
Weight | 78kg |
Dimensions (L x W x H) | 570 x 495 x 720mm |
🛠 Best Practices:
-
Always use a foot valve (non-return valve) when drawing from below the pump to ensure proper suction and avoid dry running.
-
Maintain regular oil checks and service intervals for optimal performance and longevity.
This BBT 2" Diesel High Pressure Pump offers a perfect balance of power, compactness, and efficiency, making it ideal for farms, contractors, and anyone needing reliable, high-pressure water movement with the ease of electric start.
We dispatch orders the next business day from our Wollongong warehouse. With over a decade of experience, we ensure efficient handling, so your order reaches you promptly. No delays, no fuss.
We stock spare parts for every product we sell. Access to parts supports your equipment long-term, making maintenance straightforward. You get reliable products and peace of mind, every time.
Enjoy peace of mind with our warranties: 1-year parts warranty for domestic use, and a 3-month warranty for commercial use on every product.
