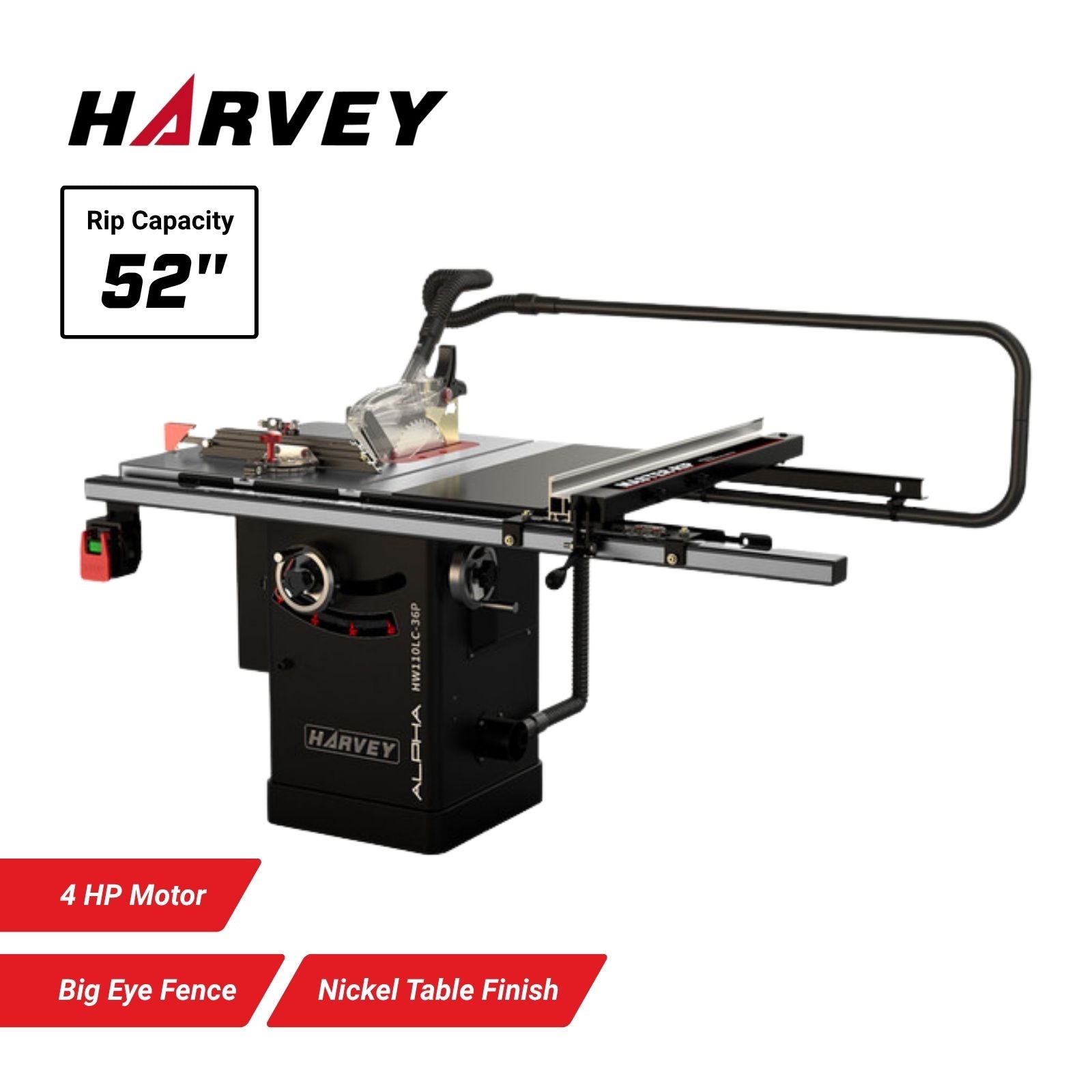

Harvey Alpha HW110S-52Pro
10" 4HP Stain-less Cabinet Saw with Big Eye Rip Fence
For many woodworkers, rust on table saws has long been a source of frustration. About ten years ago, Harvey began addressing this challenge by incorporating the TiN PVD Coating technology into products, reducing wear and rust on table saw surfaces.
However, Harvey is always striving for perfection. Five years ago, we started exploring the nickel plating technology. After countless tests on the process and formulation, we have successfully implemented optimal nickel plating technology on the tabletop and the dovetail trunnion system within the table saw, ensuring a literally rust-free experience for users by completely eliminating issues of wear and rust.
This superior nickel plating solution adopts the autocatalytic plating process, combining with a mid-phosphorus chemical nickel formula, significantly enhances wear resistance and rust prevention capabilities, resulting in a smoother and more lustrous finish.
Furthermore, the nickel-plated table surfaces achieved an impressive hardness of 500HV - 700HV, considerably improving their wear resistance. Extensive friction tests using wooden blocks consistently demonstrated that the nickel layer effectively protected the table surface.
We conducted a series of high-temperature and strong acid corrosion tests to evaluate the longevity of the nickel-plated surfaces. The results indicated that, under normal usage conditions, the nickel-plated surfaces could maintain their rust prevention performance for years. Notably, even in highly humid working environments, they exhibited exceptional rust prevention capabilities.
We are confident that the ALPHA HW110S PRO Series cabinet table saw represents the ultimate solution to the rust problem in table saws. Guided by our steadfast philosophy that "Good Enough is Not Enough," these saws exemplify our unwavering dedication to innovation and precision. Central to their groundbreaking functionality is the innovative Big Eye Rip Fence System, revolutionizing woodworking precision and ease of use.
The HW110S-52Pro series cabinet saws are a testament to performance and safety, incorporating all the exceptional features you have come to appreciate and love in the prior HW110S-52 series.
Crafted to the highest standards of quality, the ALPHA Series HW110S-36Pro Stain-less Cabinet Saws are not merely tools but an investment in your craft. Whether you are a seasoned professional or setting up your first woodworking shop, these saws offer the reliability and performance necessary to elevate your woodworking projects to new heights.
Features
Extraordinary Nickel-plated Cast Iron Table
Unprecedented Big Eye Rip Fence System
Industrial-grade DESTROYER General Purpose Blade
MG-36Pro
COMPASS" Miter Gauge
Powerful 4HP single phase TEFC motor
The Versatile Fence Positions
Unique Dovetail Structured and Nickel-plated Trunnion System
Dust Shroud Under Blade
Special Transparent Blade Guard with Optimized Protection and Dust Control
Built-in Dust Collection Hose System
Magnetic Safety Switch
- 31 -1/2" Extra Deep Precision Ground Cast Iron Table
- Powerful 3HP single phase TEFC Motor
- Unique Compass Mitre Gauge
- Heavy Duty T-square Fence with High/Low Dual Viewers
- Special Transparent Blade Guard with optimised protection and dust control
- Unique Dovetail Structured Trunnion
- Dust Shroud Under Blade
- Built-in Dust Collection Hose System
- Magnetic Safety Switch
| Product Dimensions | |
| Weight | 582 lbs (approx.) |
| Length/width/height | 1752 x 1120 x 1220 mm |
| Footprint | 533 x 560 mm |
| Switch | |
| Switch Type | Magnetic with Thermal Overload Protection |
| Standard | UL62841 |
| Motor | |
| Type | TEFC, Capacitor Start, Induction |
| Horsepower | 3 HP |
| Voltage | 230 V |
| Phase | 1 PH |
| Amps | 16 A |
| Speed | 3450 RPM |
| Power Transfer | V-Ribbed Belt Drive |
| Blade Information | |
| Maximum Blade Diameter | 254 mm |
| Riving Knife Thickness | 2.5 mm |
| Maximum Width of Dado | 20.3 mm |
| Blade Tilt | Left 0-45° |
| Arbor Diameter at Blade | 15.875 mm 5/8' |
| Arbor Speed | 4800 RPM |
| Arbor Bearings | Sealed and Permanently Lubricated |
| Cutting Capacities | |
| Maximum Depth of Cut at 90° | 79.375 mm |
| Maximum Depth of Cut at 45° | 55.5 mm |
| Maximum Rip, Right of Blade | 915 mm, 1320 mm |
| Maximum Rip, Left of Blade | 228 mm |
| Table Information | |
| Height | 860mm |
| Main Table - Length/width/thickness | 800 x 1120 x 46.5 mm |
| Miler Slot | |
| Miler Gauge Slot Type | T-Shape |
| Miler Gauge Size - Width/Height | 19.05 x 9.525 nn |
| Blade Guard | |
| Blade Guard Type | Glider Saw Blade Guard |
| Fence | |
| Fence Type | T-square High and Low Fence |
| Fence Size | 85.5 x 48.5 mm |
| Other Information | |
| Finishing | Powder Coated |
| Dust Port Size | 100 mm |
