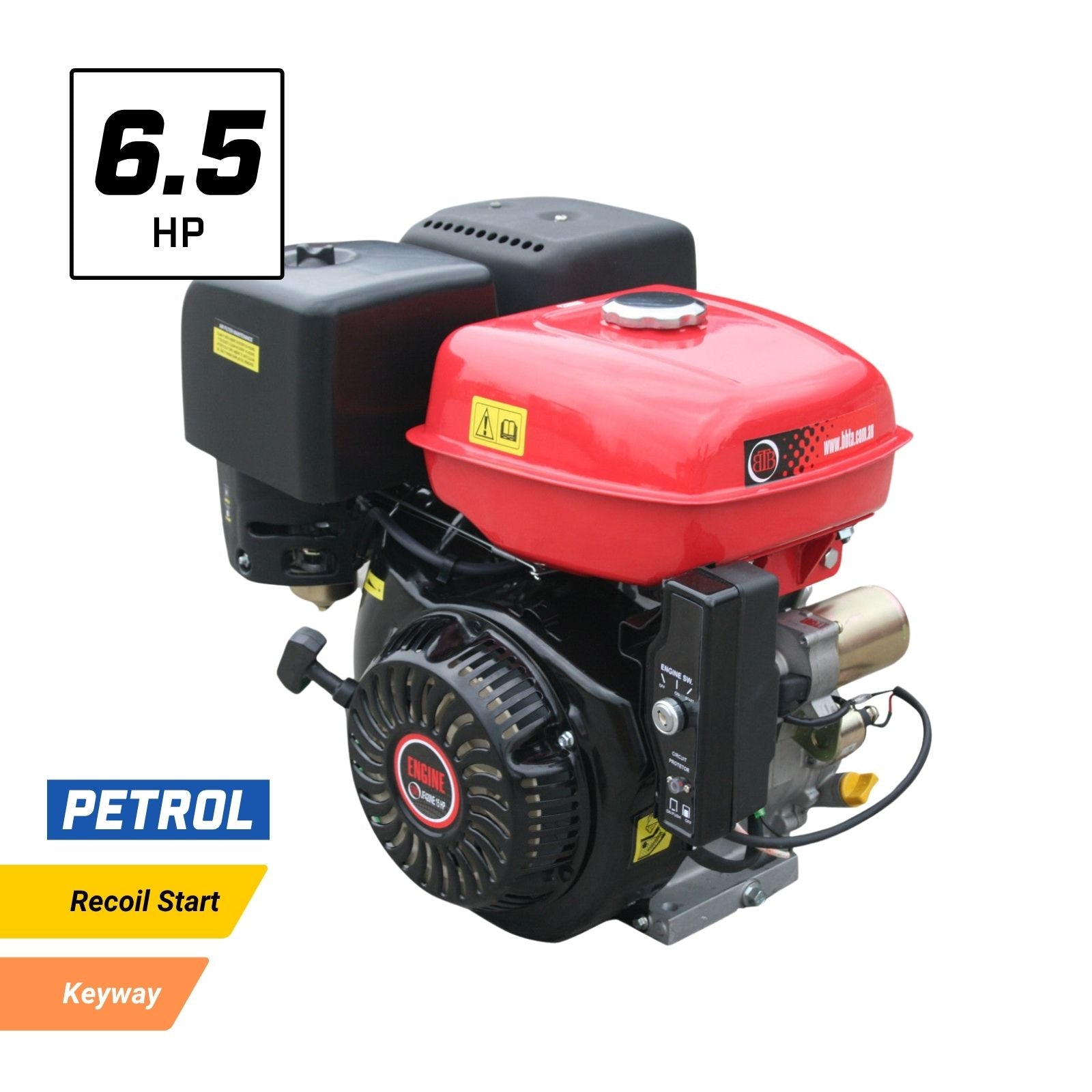

JD 6.5HP Stationary 4 Stroke Engine Recoil Start
JD 6.5HP Stationary 4 Stroke Engine Recoil Start
$399.00
$229.00
/
Description

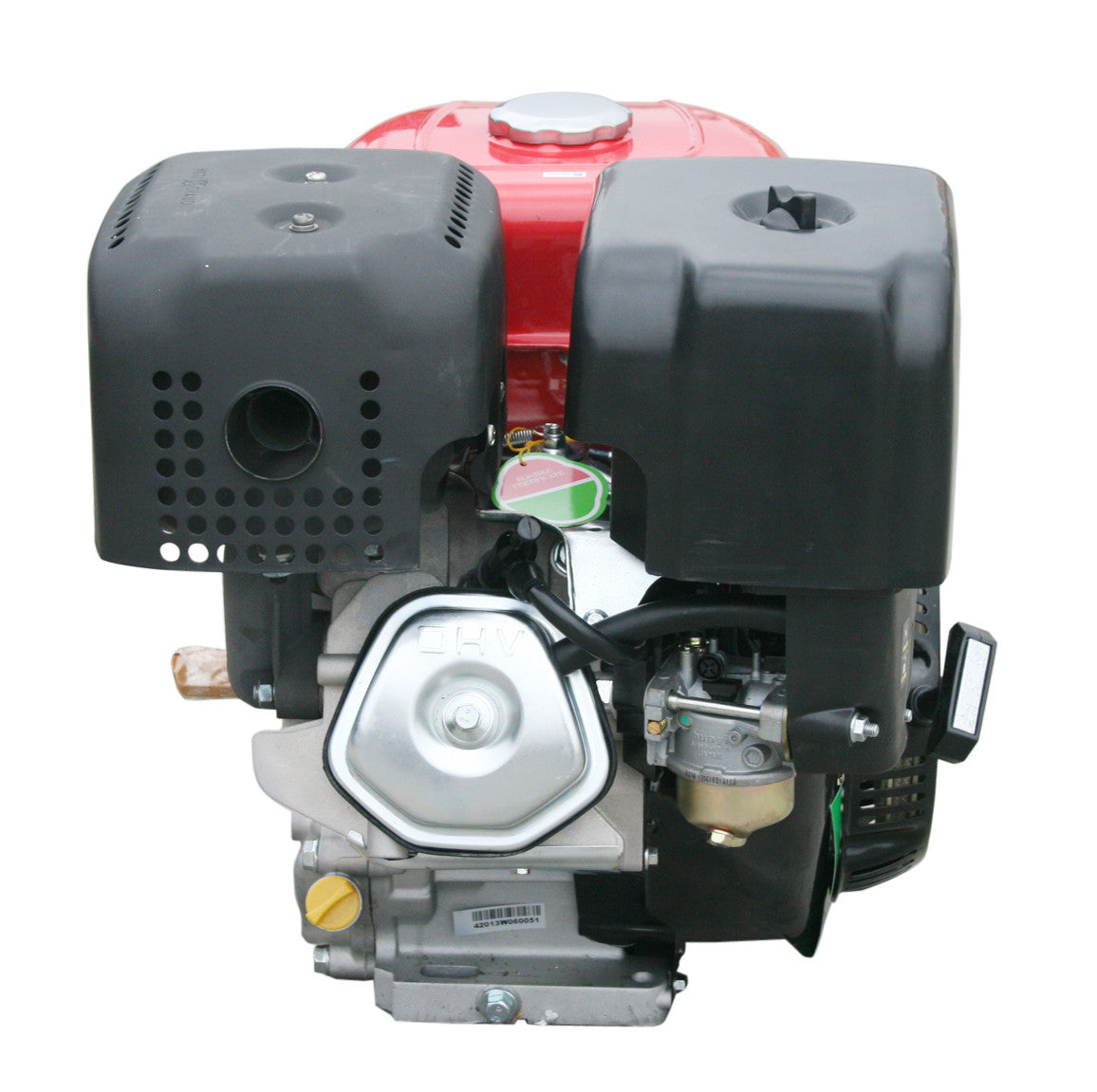

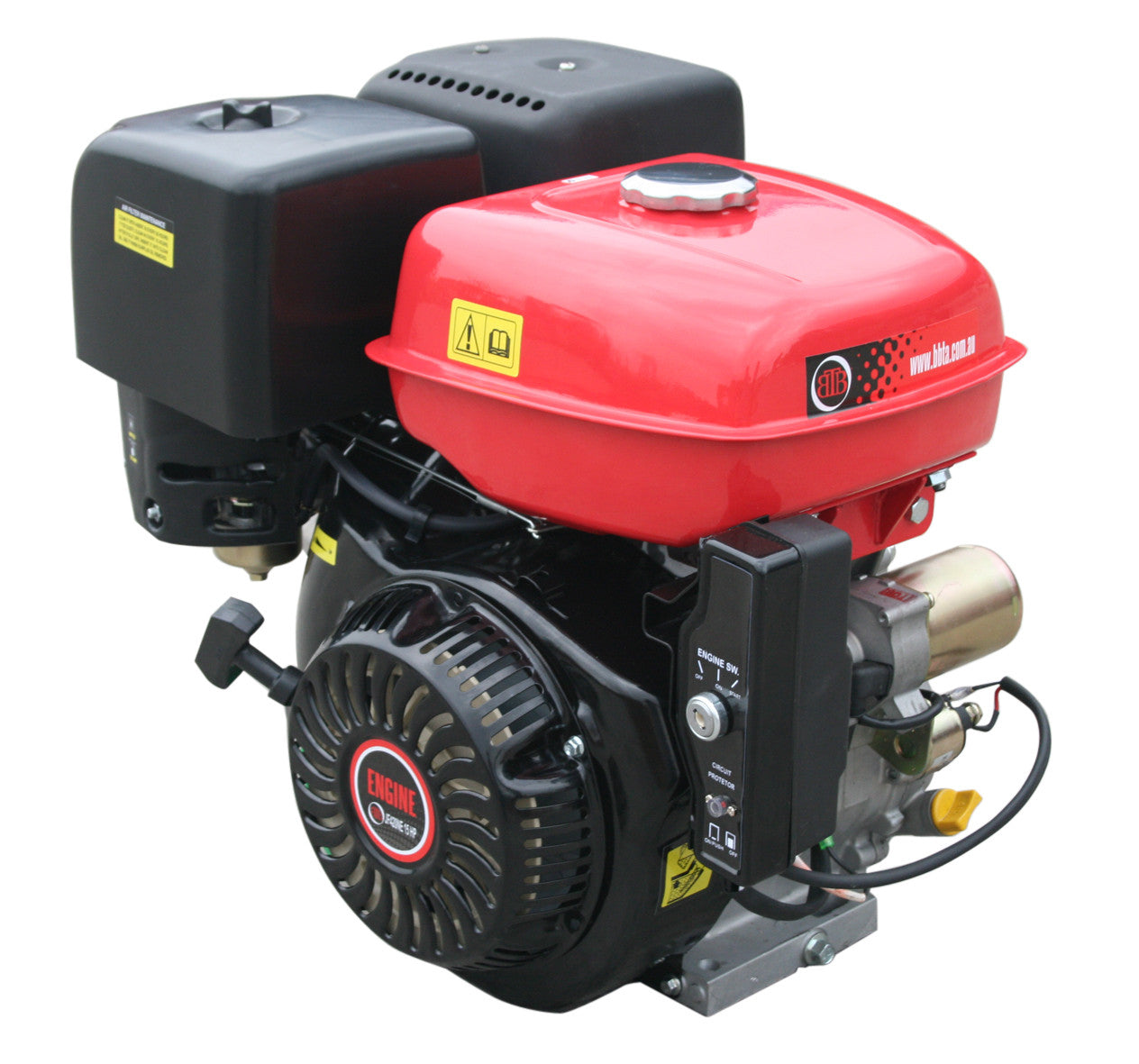

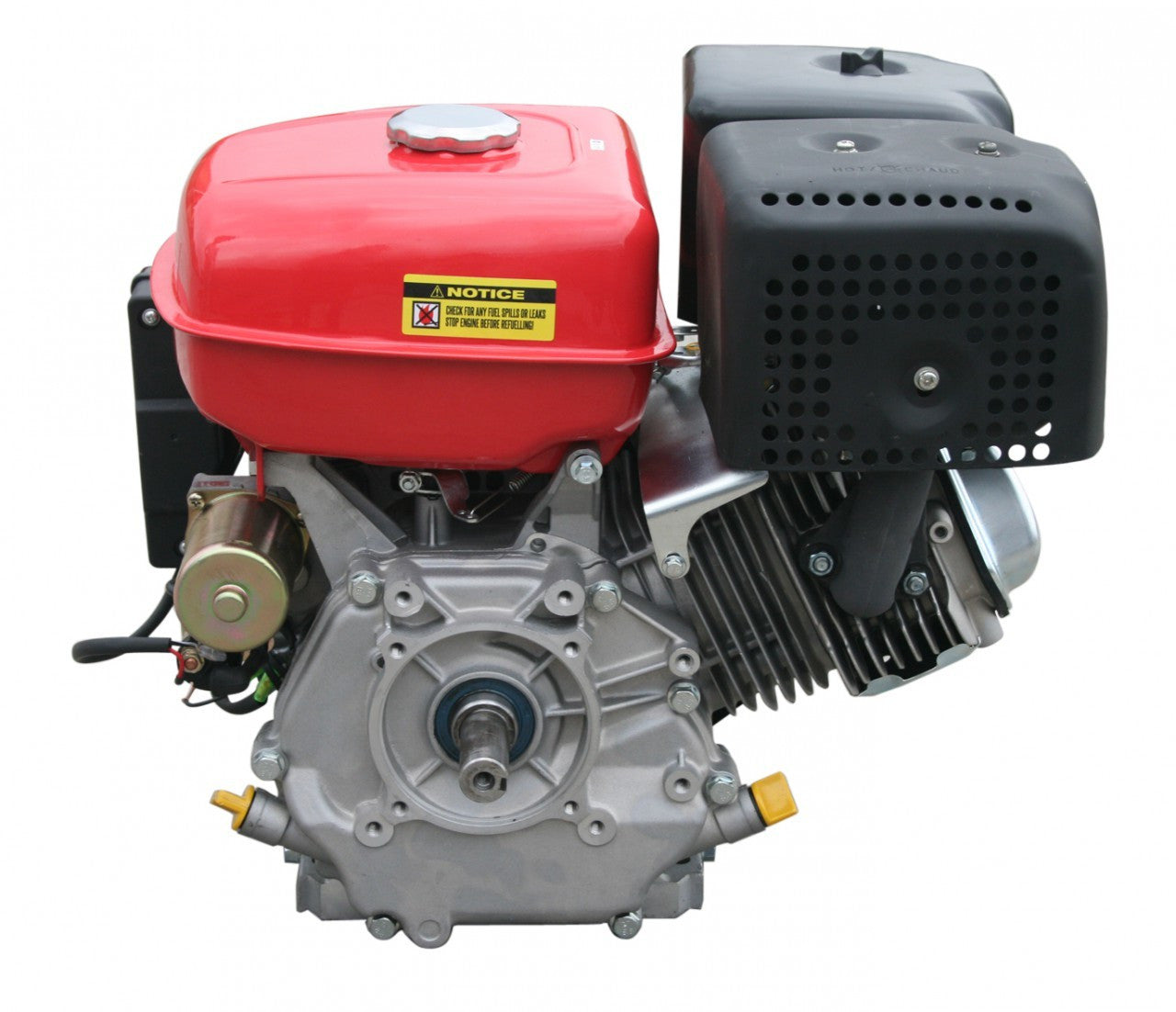

JD 6.5HP Engine JF200N
These JD engines come from the 3rd largest engine manufacturer in the world. They have been producing quality reliable engines for more than 60 years and are the engine of choice for many major machinery companies world wide.
Shaft size on this engine is 19mm with a 1/4" or 6.5mm key way.
| Model | JF168N/E | JF200N/E |
| Engine type | 4-stroke, 25°inclined, single cylinder with Air-cooled | |
| Bore x Stroke (mm/inch) | 68 x 45/2.68 x 1.77 | 68 x 54/2.68 x 2.13 |
| Displacement (ml) | 163 | 196 |
| Compression ratio | 8.5:1 | |
| Starting output (HP/rpm) | 5.5/3600 | 6.5/3600 |
| Max. torque (N.m/rpm) | 10.8/2500 | 13/2500 |
| Ignition system | Non-contact transistorised ignition (T.C.I.) | |
| Start mode | Recoil and hand-operated/Electric start | |
| Air cleaner | Semi-dry, oil bath, dual, double silent and cyclone type | |
| Fuel tank capacity (L/gal) | 3.6/1 | 3.6/1 |
| Fuel consumption (g/HP-hour) | 290 | |
| Engine oil capacity (L/gal) | 0.6/0.16 | |
| Dimensions (L x W x H) (mm/inch) | 415 x 340 x 385/16.3 x 13.4 x 15.15 | |
| Net weight (kg/lbs) | 15/33 | 16/35.2 |
| 480x500x600 | 20kg | |
| Gross Weight (kg/lbs) | 17/37.4 | 18/39.6 |
We dispatch orders the next business day from our Wollongong warehouse. With over a decade of experience, we ensure efficient handling, so your order reaches you promptly. No delays, no fuss.
We stock spare parts for every product we sell. Access to parts supports your equipment long-term, making maintenance straightforward. You get reliable products and peace of mind, every time.
Enjoy peace of mind with our warranties: 1-year parts warranty for domestic use, and a 3-month warranty for commercial use on every product.
