Description
Harvey SHARK S-10 Universal Overhead Guard – Table Saw Safety System with Dust Collection & Tri-Axis Adjustment
Professional Safety. Seamless Workflow. Built for Serious Woodworkers.
Upgrade your table saw setup with the Harvey SHARK S-10 Universal Overhead Guard, a premium safety system designed to deliver maximum protection, precision control, and workshop efficiency—without interrupting your workflow.
Engineered for both professional workshops and serious DIY users, the SHARK S-10 combines advanced guard positioning, smooth movement, and integrated dust control into one intelligent system. It doesn’t just sit above your saw—it moves with you, adapts to your setup, and enhances every cut you make.
Whether you're working on cabinetry, furniture, or high-precision cuts, the SHARK S-10 provides confidence, visibility, and safety at every pass.
Key Features & Benefits

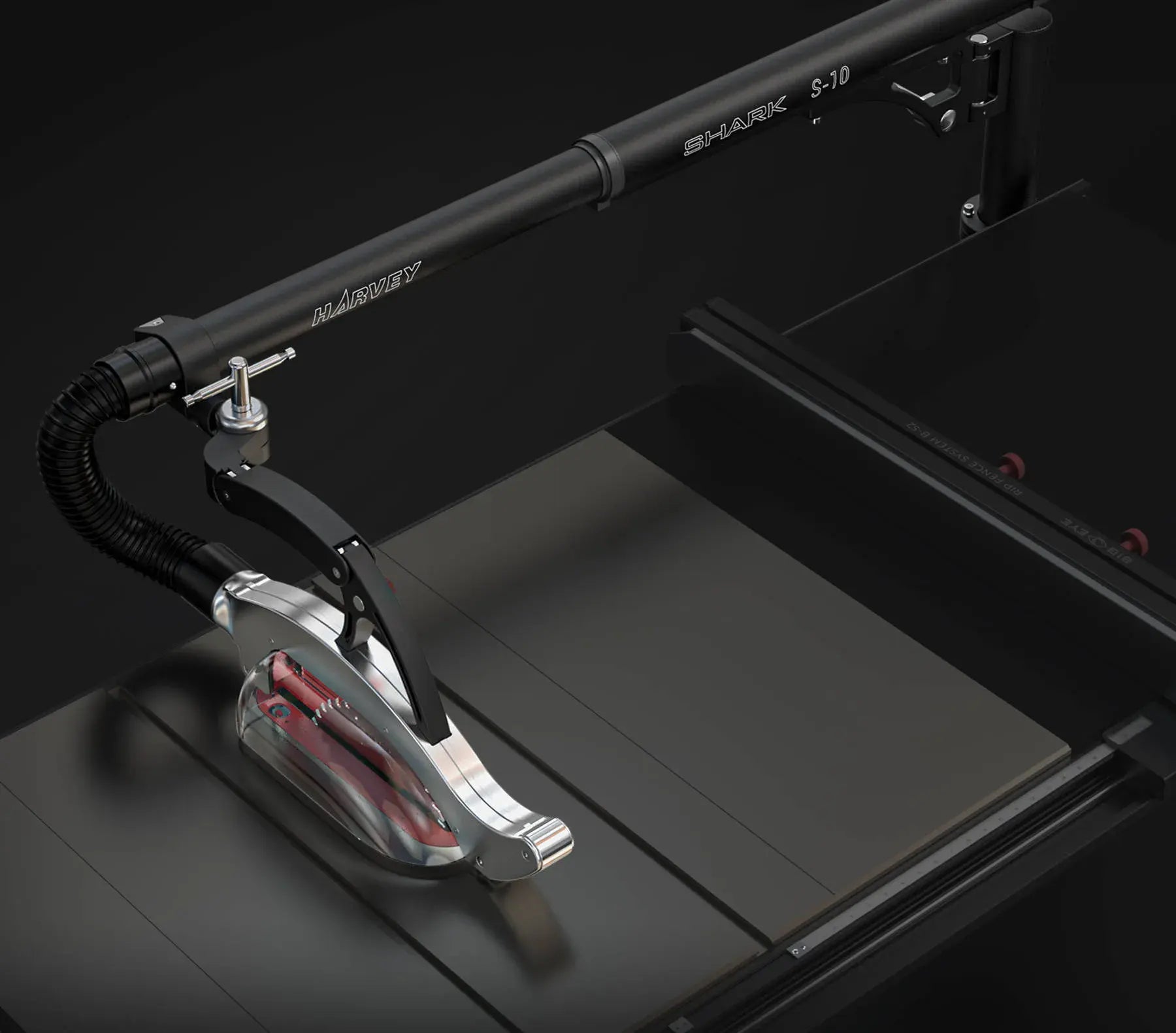

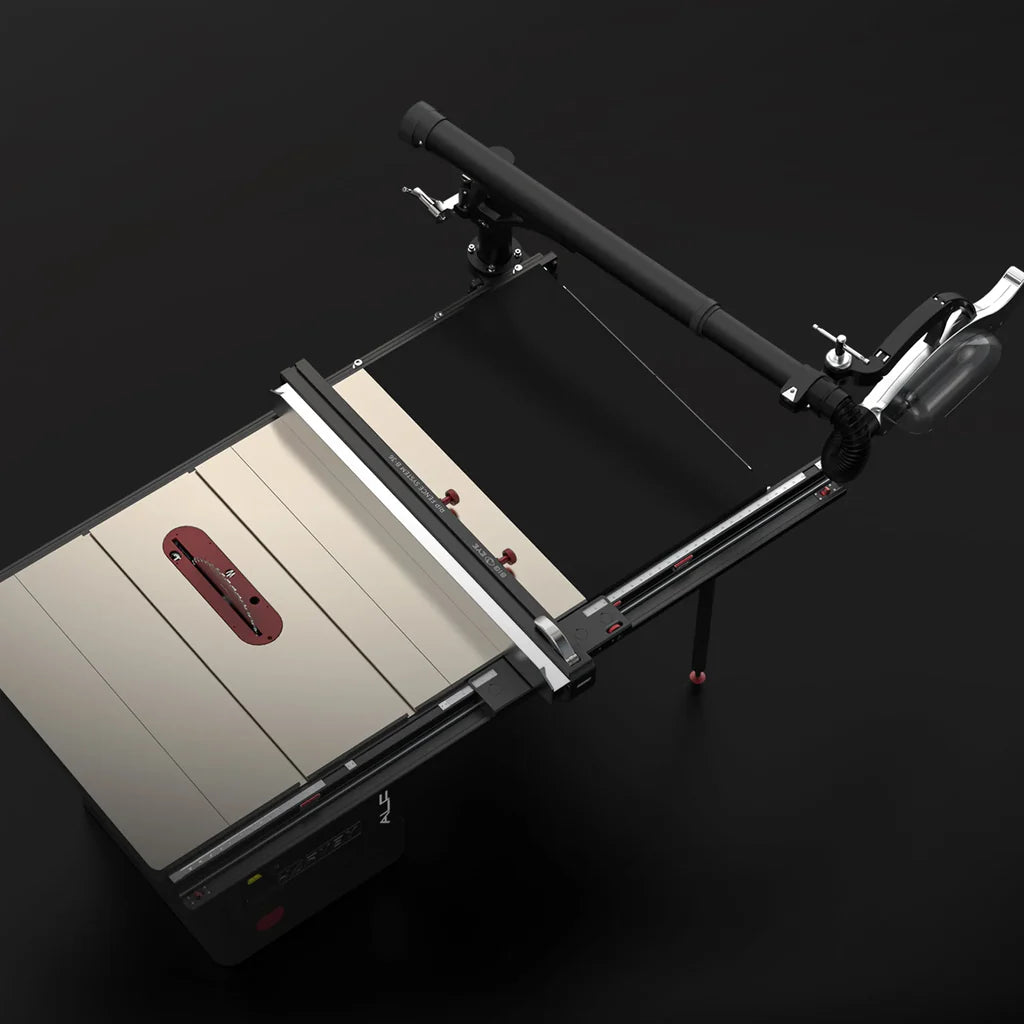

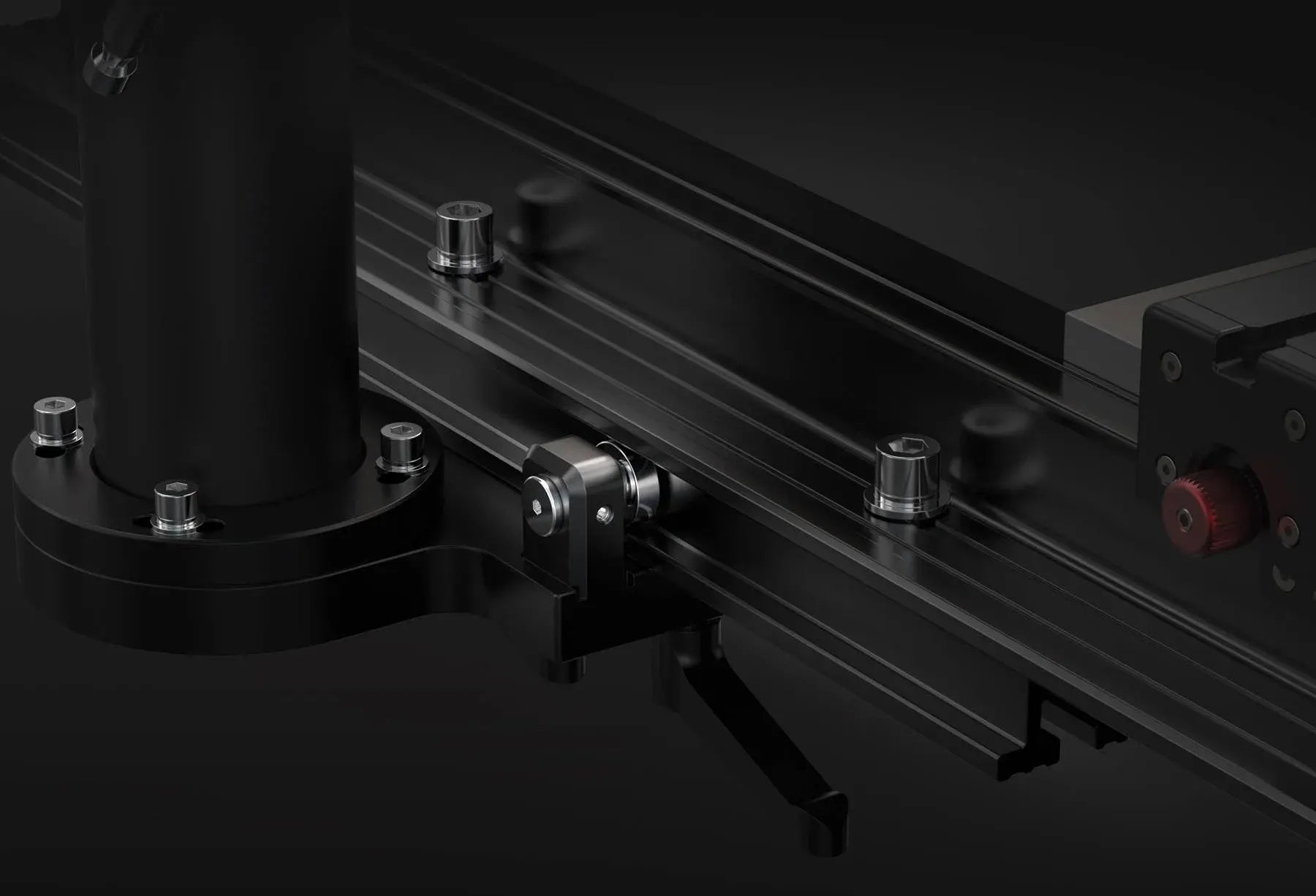

Universal Rail-Mounted Design
Designed for fast installation, the SHARK S-10 mounts directly to your table saw’s rear L-shaped rail, making it compatible with a wide range of saws.

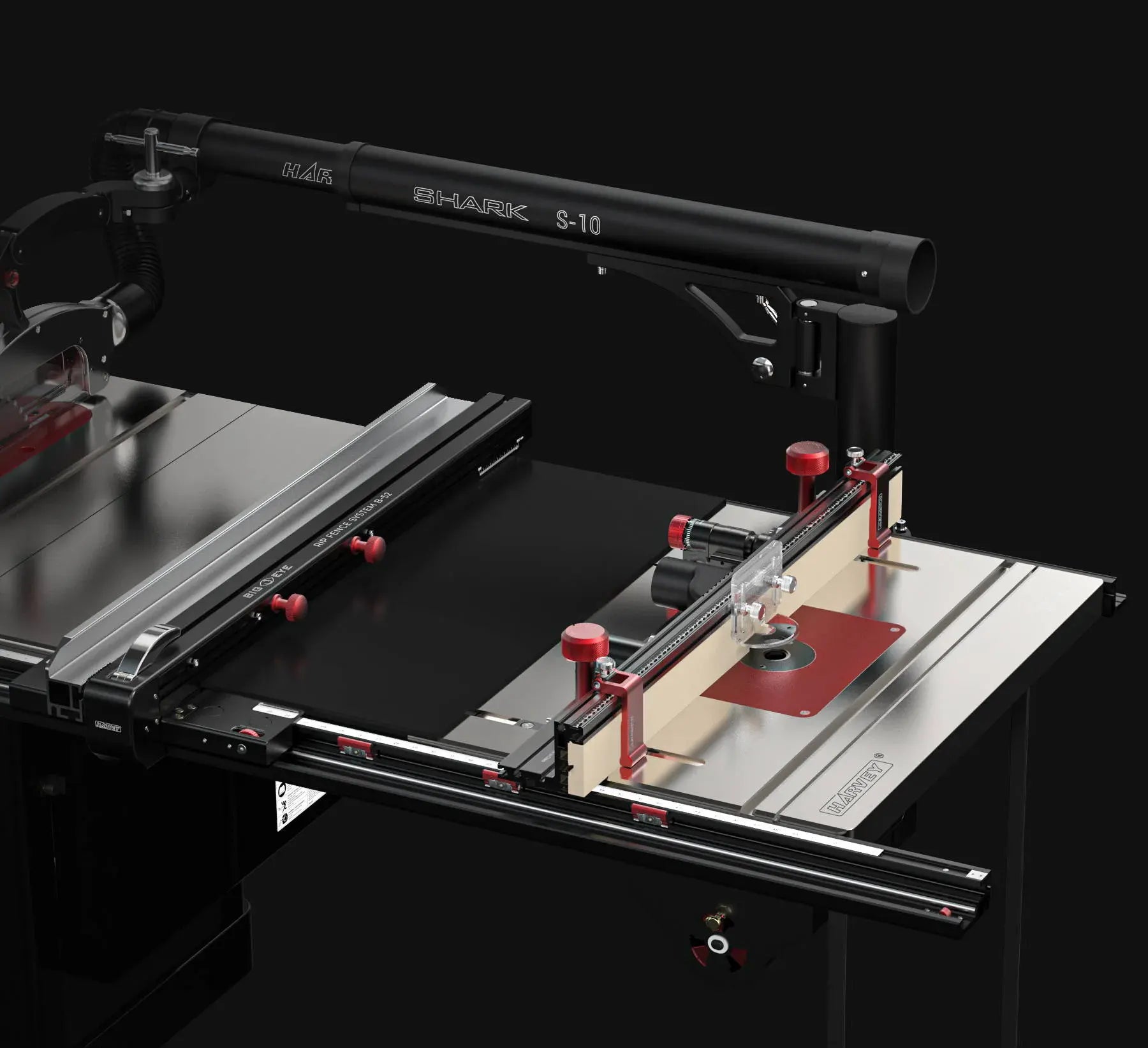

The system can also slide out of the way when needed, providing full access to your saw or router table attachment without removing the unit.

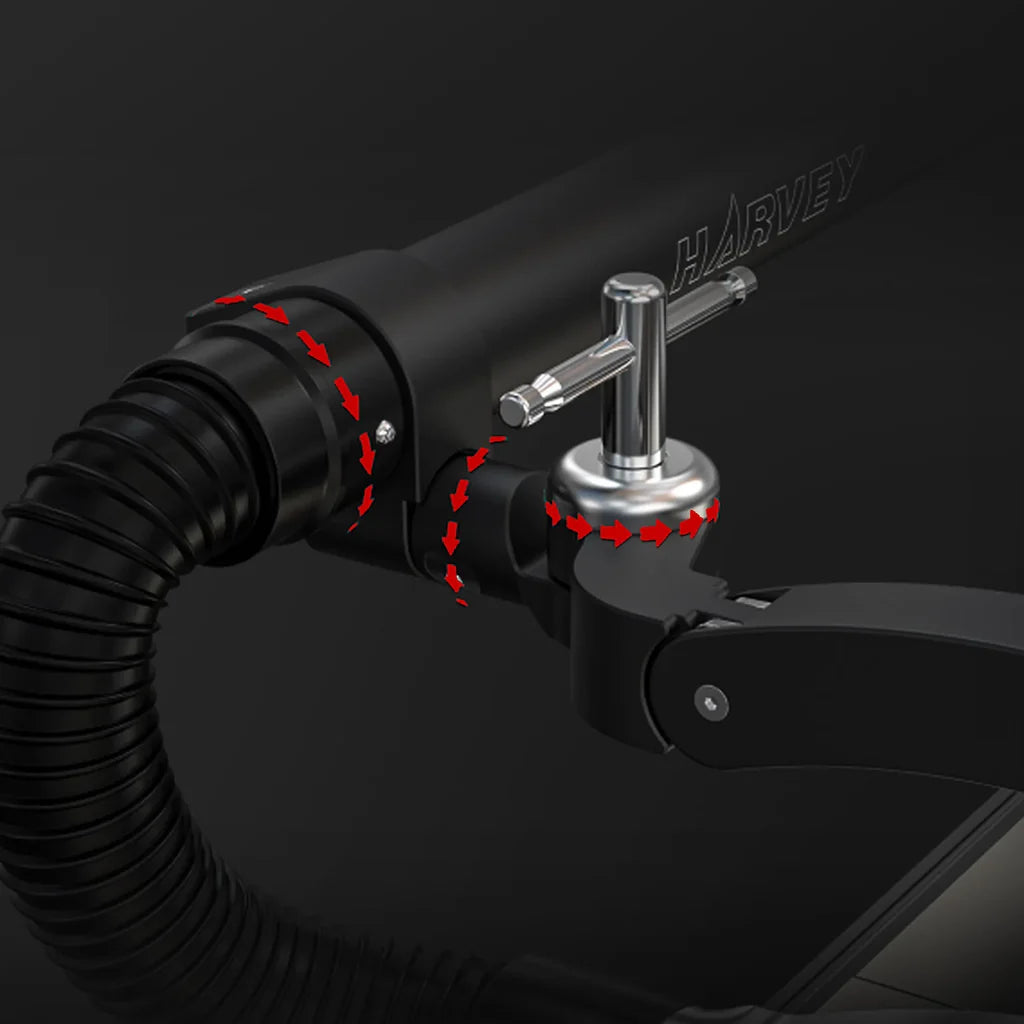

Tri-Axis Precision Adjustment
The SHARK S-10 features a fully adjustable tri-axis articulation system, allowing precise positioning of the guard for any cut.
This ensures:
• Accurate alignment with the blade
• Maximum protection across all operations
• Flexibility for different materials and setups

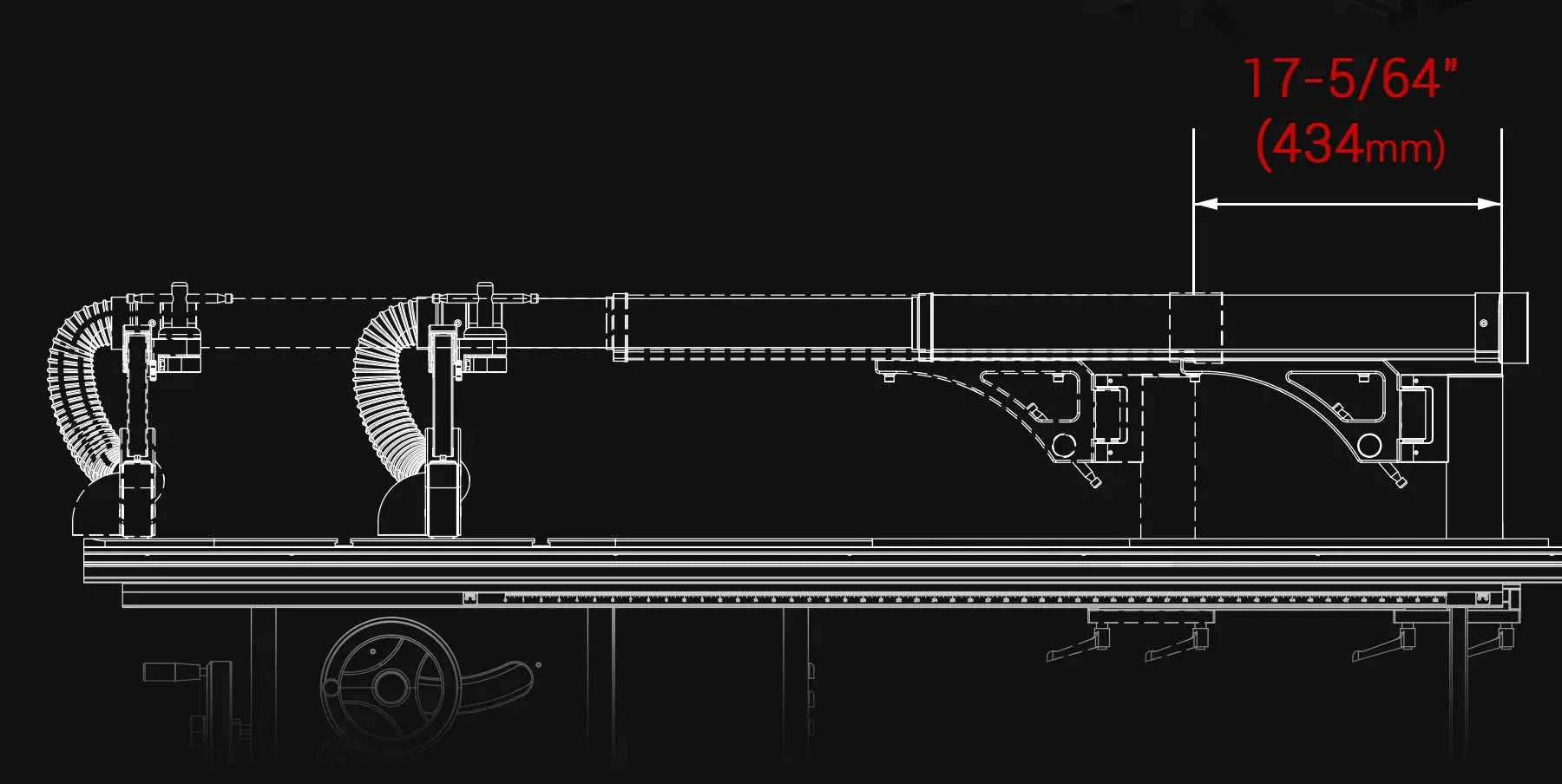

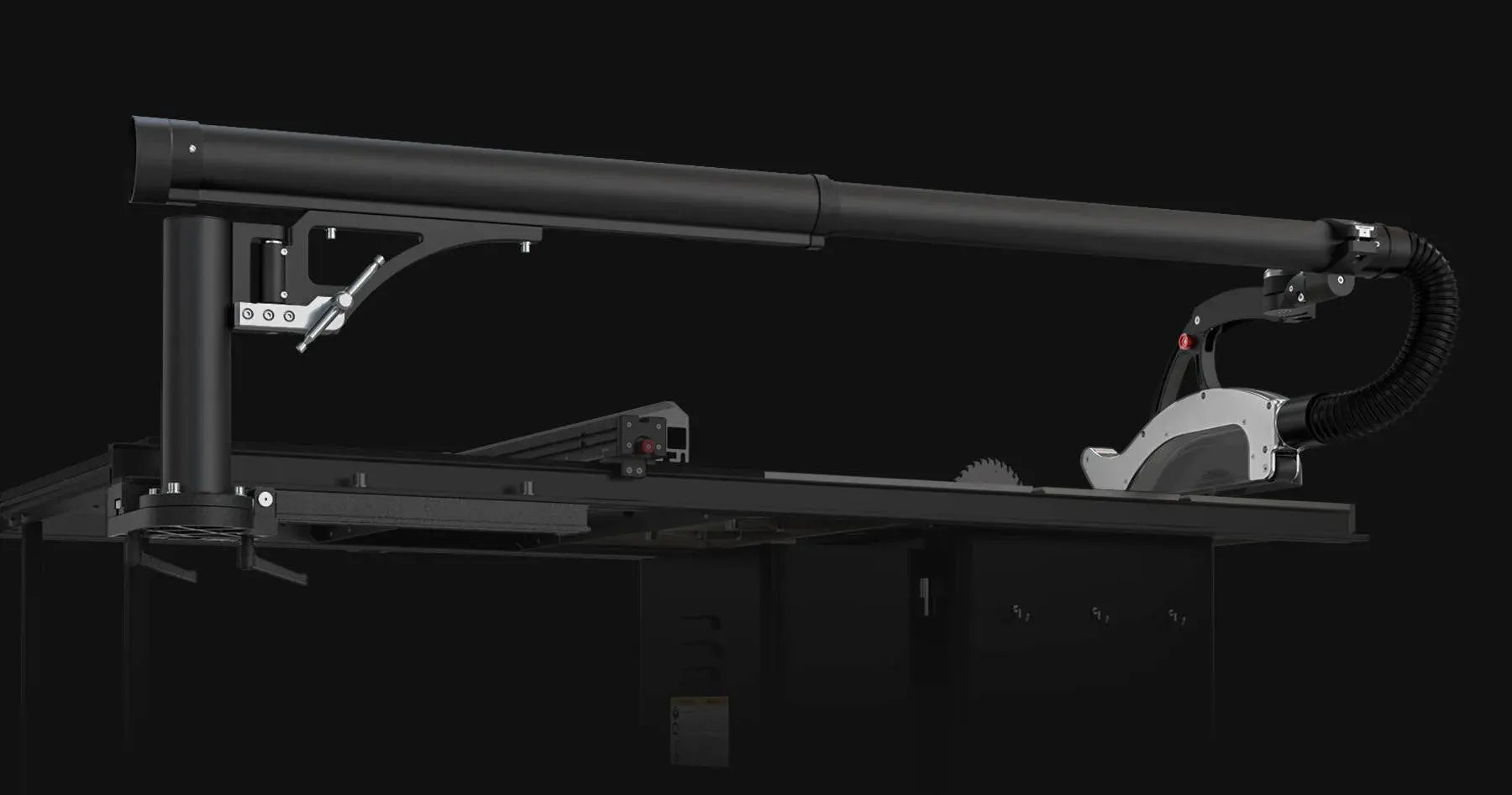

Telescopic Arm – Wide Reach Compatibility
The telescopic upper arm extends from 1,000 mm to 1,590 mm, providing a wide adjustment range to suit:
• Compact home workshops
• Large professional setups
• Different table saw sizes

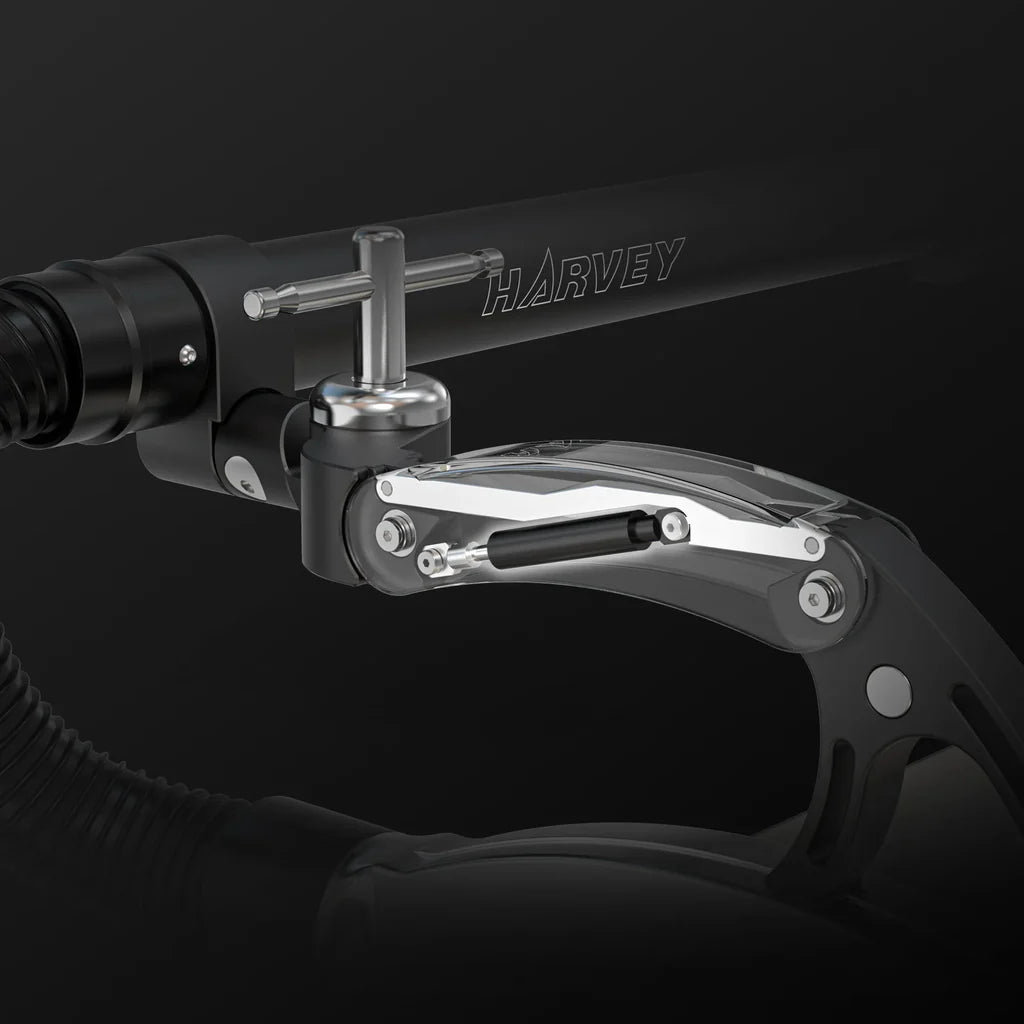

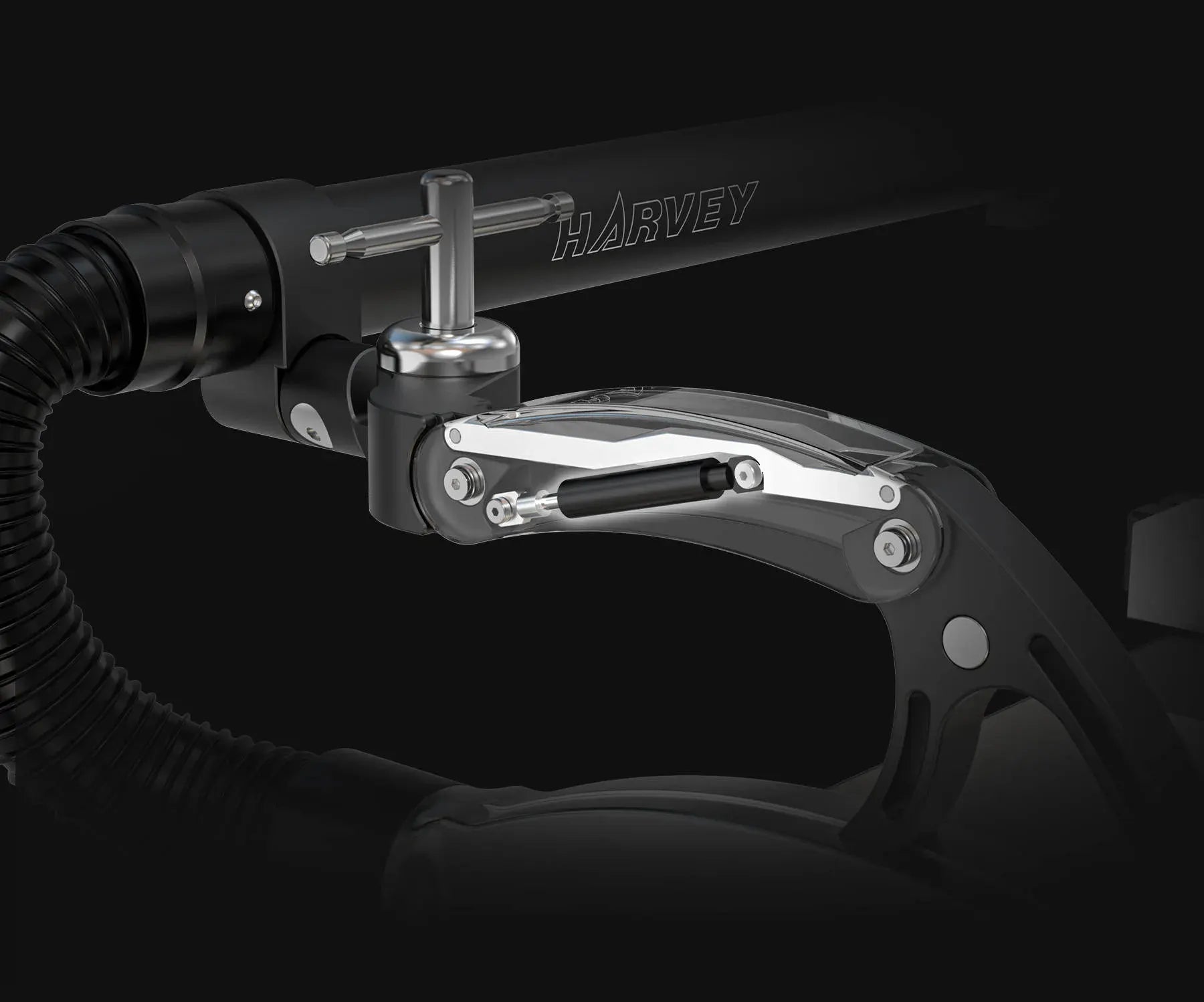

Air-Spring Assisted Lift System
The integrated air-spring mechanism allows the guard to:
• Lift effortlessly
• Lower smoothly
• Stay precisely in position
No more heavy or awkward adjustments—just controlled, fluid movement every time.

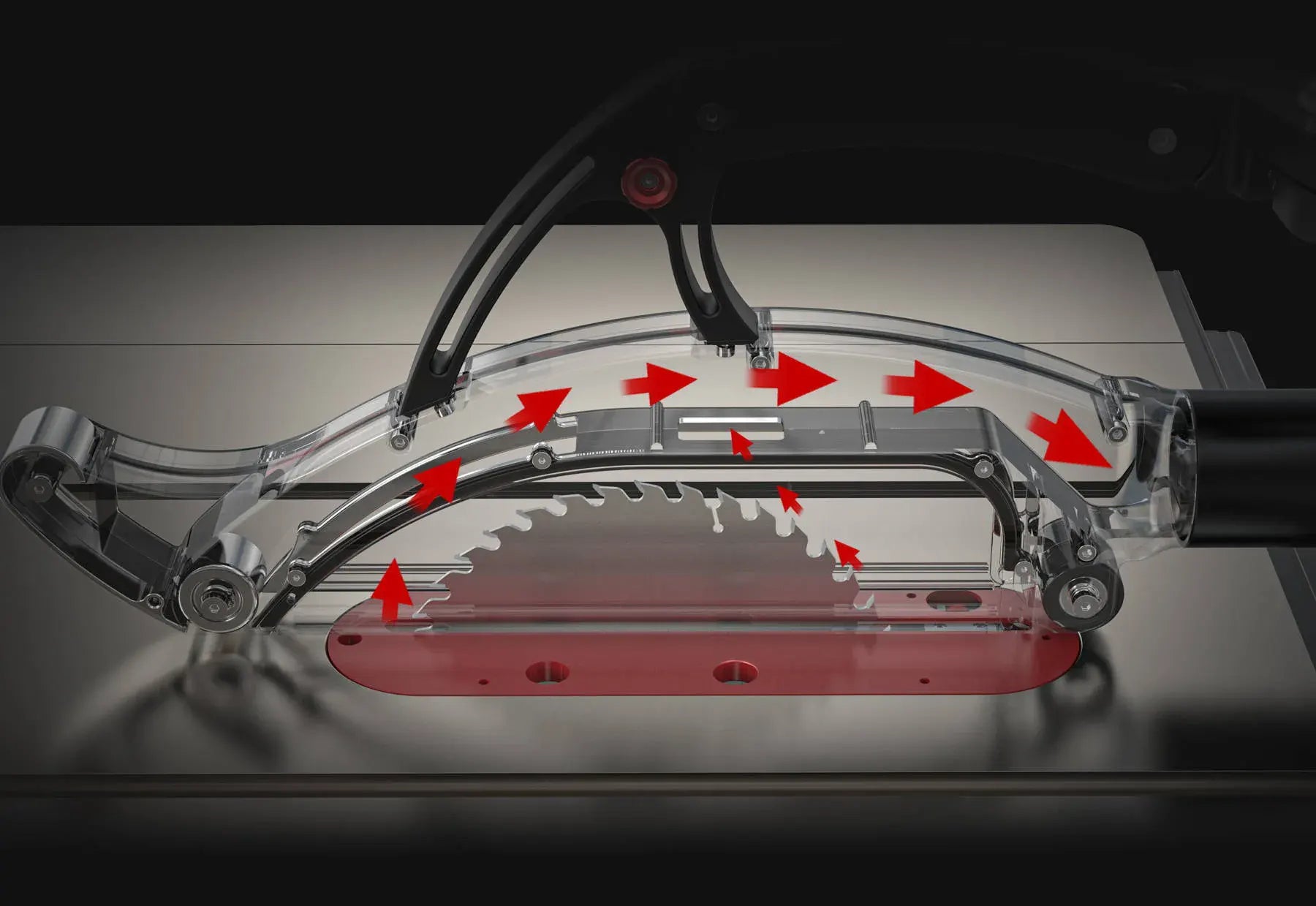

Integrated Dust Collection System
Built-in dust channel captures dust directly at the source, improving:
• Air quality in your workshop
• Cut visibility
• Overall cleanliness
Perfect for users serious about maintaining a clean and efficient workspace.

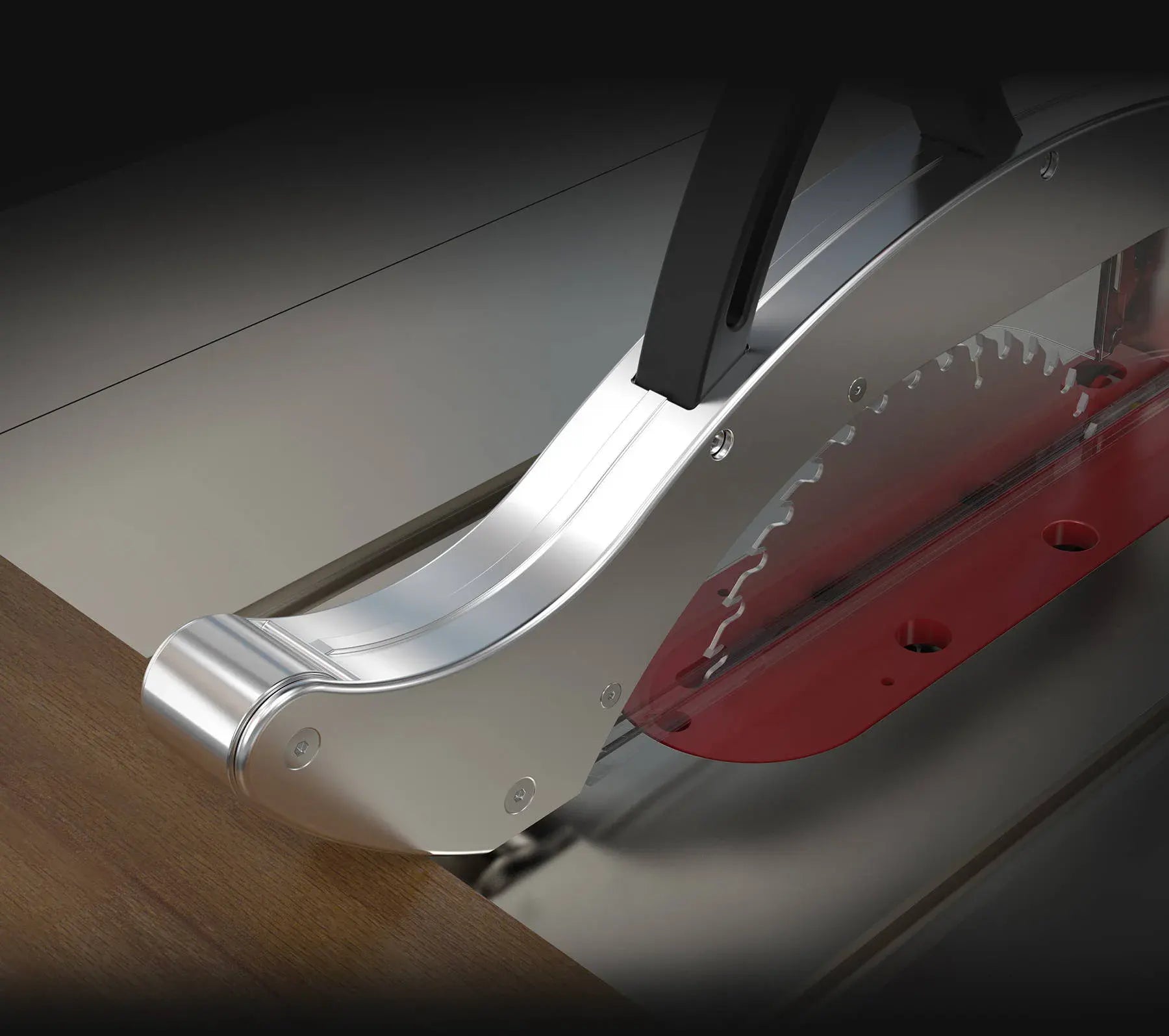

Smooth Glide Roller System
Equipped with a durable nylon roller, the SHARK S-10 ensures:
• Smooth, resistance-free material feeding
• Reduced friction on timber surfaces
• Protection of delicate workpieces

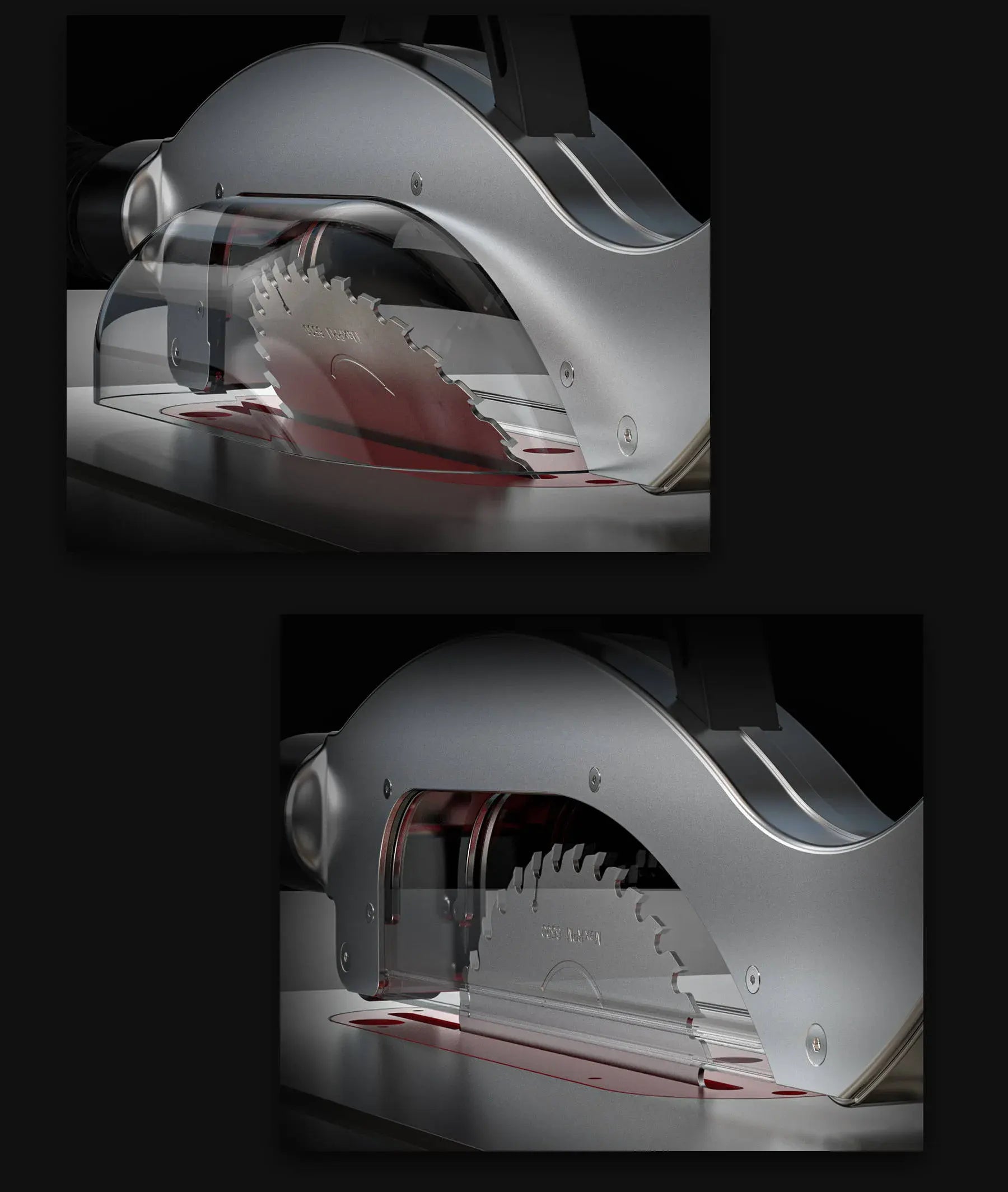

Dual Guard System – Flat & Dome Included
Supplied with both flat and dome guards, allowing safe operation across:
• Standard 90° cuts
• Bevel and angled cuts
This ensures versatility without compromising safety.

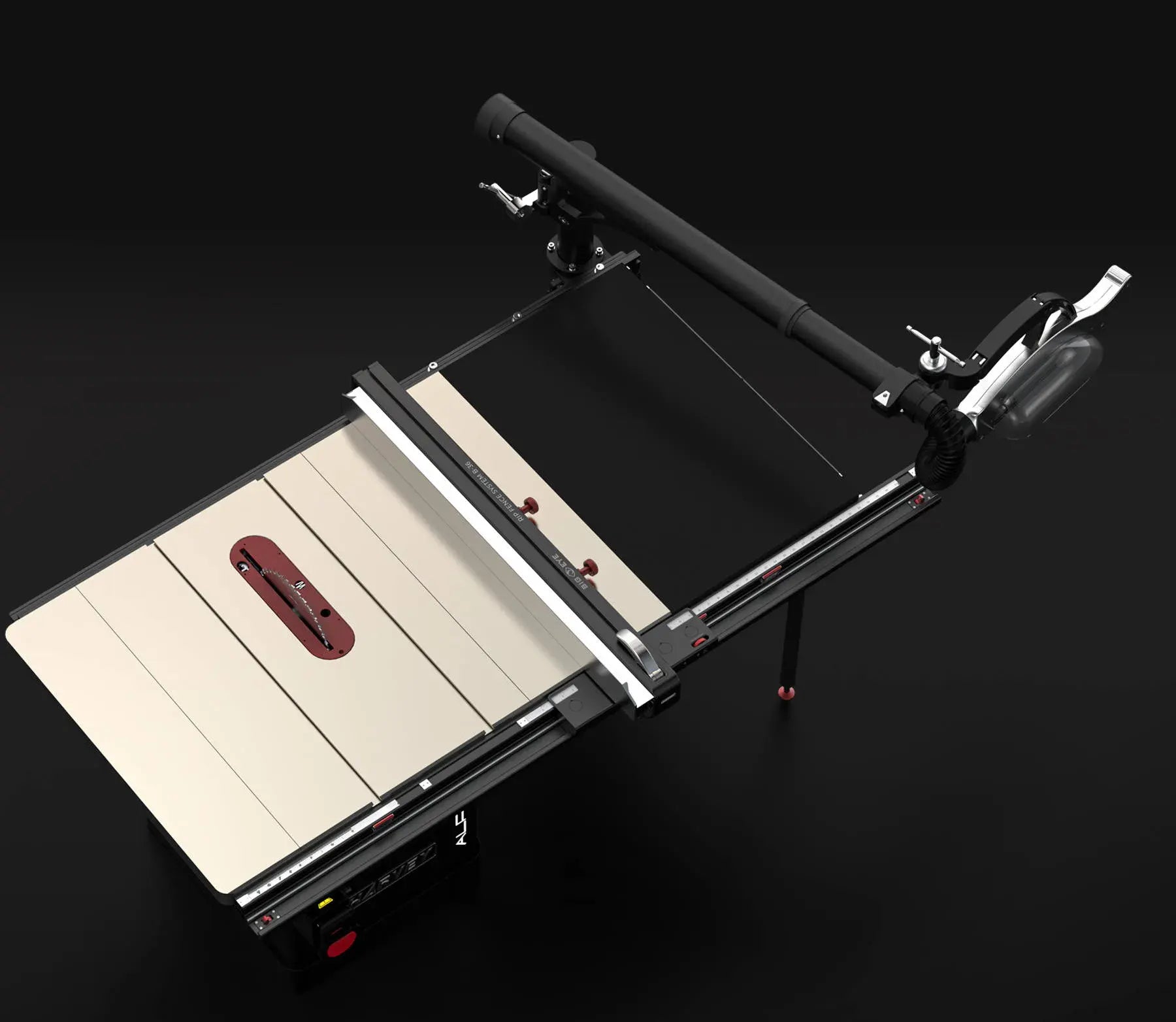

Clear-Away Swing Function
When full access is required, the guard can be quickly swung out of the way, allowing:
• Maximum rip capacity
• Easy setup changes
• Unrestricted workspace

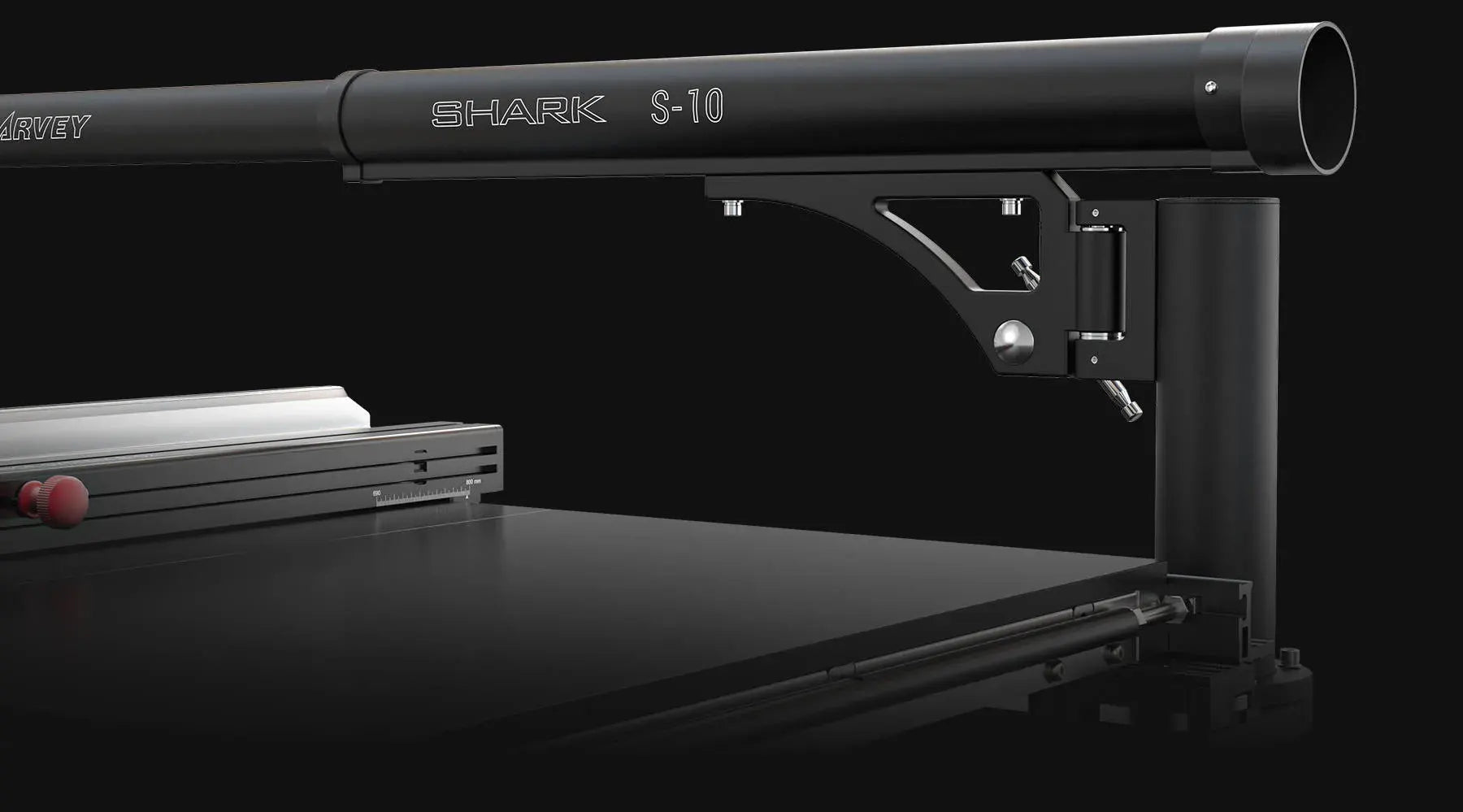

Premium Construction for Long-Term Use
Built using high-quality materials designed for durability:
• Impact-resistant transparent guard for visibility and safety
• Heavy-duty steel structure for stability
• Wear-resistant nylon components for longevity
Designed to perform reliably in demanding workshop environments.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | SHARK S-10 |
| Type | Universal Overhead Table Saw Guard |
| Mounting | Rear Rail Mounted (L-Shaped Rail Compatible) |
| Adjustment System | Tri-Axis Articulation |
| Arm Extension Range | 1,000 mm – 1,590 mm |
| Movement System | Air-Spring Assisted Lift |
| Dust Collection | Integrated Dust Channel |
| Guard Types | Flat Guard + Dome Guard Included |
| Roller Type | Nylon Feed Roller |
| Guard Material | Impact-Resistant Transparent Polymer |
| Compatibility | Universal (Most Table Saws with Rear Rail) |
Who It’s For
The Harvey SHARK S-10 is ideal for:
• Professional woodworkers and cabinet makers
• Workshop operators focused on safety compliance
• Serious DIY users upgrading their table saw setup
• Anyone looking to improve dust control, safety, and workflow efficiency
Why Choose the SHARK S-10?
Unlike basic overhead guards, the SHARK S-10 is a fully integrated system that works with your workflow—not against it.
It delivers:
• Enhanced operator safety
• Improved dust control
• Better cut visibility
• Increased workshop efficiency
This is not just a safety upgrade—it’s a productivity upgrade for your entire workshop.
