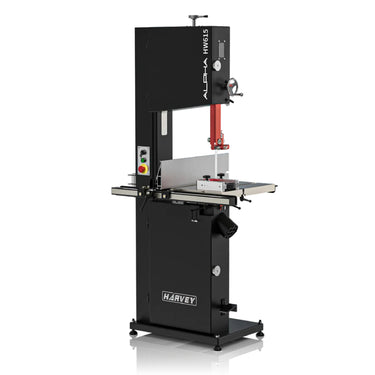

Harvey HW615PRO 15” Industrial Band Saw

Harvey Alpha HW615Pro

3HP 15” Stain-less Industrial Bandsaw

For many woodworkers, rust on bandsaws has long been a source of frustration.

About ten years ago, Harvey began addressing this challenge by incorporating the TiN PVD Coating technology into products, reducing wear and rust on table saw surfaces.

However, Harvey is always striving for perfection. Five years ago, we started exploring the nickel plating technology

After countless tests on the process and formulation, we have successfully implemented optimal nickel plating technology on the tabletop, the cast iron flywheel and the Worm Gear Tilting System within the bandsaws, ensuring a literally rust-free experience for users by completely eliminating issues of wear and rust.

This superior nickel plating solution adopts the autocatalytic plating process, combining with a mid-phosphorus chemical nickel formula, significantly enhances wear resistance and rust prevention capabilities, resulting in a smoother and more lustrous finish.

Furthermore, the nickel-plated table surfaces achieved an impressive hardness of 500HV-700HV, considerably improving their wear resistance. Extensive friction tests using wooden blocks consistently demonstrated that the nickel layer effectively protected the table surface.

We conducted a series of high-temperature and strong acid corrosion tests to evaluate the longevity of the nickel-plated surfaces. The results indicated that, under normal usage conditions, the nickel-plated surfaces could maintain their rust prevention performance for years. Notably, even in highly humid working environments, they exhibited exceptional rust prevention capabilities.

We are confident that the Alpha HW615Pro Stain-less Bandsaw represents the ultimate solution to the rust problem in bandsaws. Guid by our steadfast philosophy that "Good Enough is Not Enough," this bandsaw exemplifies our unwavering dedication to innovation and precision.

What's more, the Alpha HW615Pro is built with a 3 HP, 220V motor to ensure enough power to undertake any job that a 15" bandsaw can handle. It features a solid, reinforced structural steel frame; premium, heavy-duty cast iron flywheels; unique tool-less upper and lower blade guides; the newly developed COMPASS RG-2 Roller Guide for safe and enjoyable cutting; a substantial 20" x 20" work table; an extra-large precision high-low aluminum fence with a solid T-square gliding/locking structure; a worm gear system for smooth work table tilt; dual trunnions for stability; and a fully enclosed blade guard.

For woodworkers seeking a bandsaw that combines traditional reliability with innovative features, the Alpha HW615Pro is the ultimate choice. Experience the next level of industrial-grade woodworking machinery with Harvey Industries.

Features

* Dynamically Balanced Cast Iron Flywheels with Nickel-Plating

• Nickel-Plated Worktable For Superior Rust and Wear Resistance

• Nickel-Plated Worm Gear Tilting System

* 3HP Powerful TEFC Single Phase Motor (220V)

* Unique Tool-Less Upper and Lower Blade Guides

* Extra Sized and Robust Steel Frame

* Quick Release Tensioning Levers

* COMPASS RG-2 Roller Guide

* Foot Brake with Micro Switch

* Full Enclosure Protection for Blade

* Micro-Switches On the Top and Bottom Doors

* Dual Trunnion System for Stable Support of Worktable

* Extra Large Aluminum Alloy Precision High/Low Fence

Specification

Motor(TEFC)	3 HP, 220 V, Single Phase, 60 Hz
Flywheel Diameter	15"
Blade Length	15"
Blade Width	1/8" - 1"
Throat Depth	14"
Fence Height(Low Position)	1/2"
Fence height (High Position)	6"
Machine Height	72"
Resaw Capacity	14"
Linear Speed	3740 SFPM
Base Size	25-+1/4" x 17-3/4"
Table Size	20" x 20"
Table Height From the Floor	34-1/4"
Net Weight	441lbs
Total Weight	485lbs
Packaging Dimension	30" x 26" x 77"
