Koop 192 12hp Diesel Electric Start Engine Keyway
Koop 192 12hp Diesel Electric Start Engine Keyway
$1,199.00
$1,099.00
/
Description

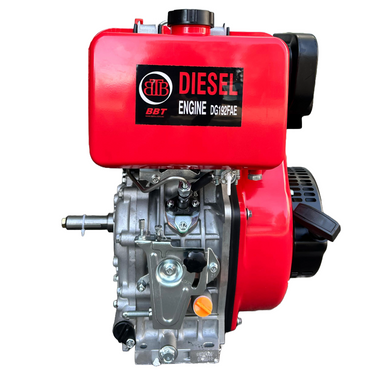

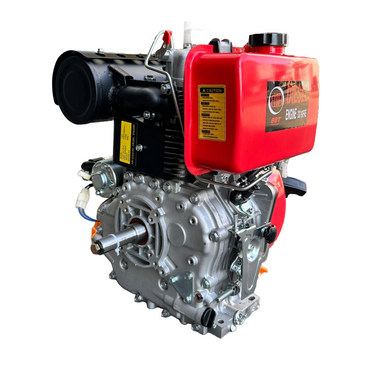

Koop 12HP Diesel Engine – Electric Start | 25.4mm Keyed Shaft
Commercial Diesel Power. Built for Hard Work.
Whether you're replacing a worn engine or building a new machine, the engine you choose determines the reliability of the entire project.
The Koop 12HP Diesel Engine (KD192FE) has been engineered to deliver dependable power, outstanding fuel economy and long service life across a wide range of agricultural, commercial and industrial applications.
Featuring a 499cc direct injection diesel engine, electric start with recoil backup, and a 25.4mm (1") keyed output shaft, this engine is ready to power everything from irrigation pumps and generators to compressors and custom-built machinery.
Why Choose the Koop 12HP Diesel Engine?
✔ 12HP Commercial Diesel Engine
✔ Direct Injection Technology
✔ Electric Start + Recoil Backup
✔ 25.4mm (1") Keyed Output Shaft
✔ Outstanding Fuel Economy
✔ Built for Australian Conditions
One Engine. Countless Applications.
The Koop KD192FE has been designed as a versatile stationary power unit suitable for hundreds of applications.
Its standard shaft size and compact footprint make it an excellent replacement engine while also providing equipment builders with a reliable platform for new machinery.
Ideal for:
- Water pumps
- Firefighting pumps
- Portable generators
- Hydraulic power units
- Pressure washers
- Agricultural equipment
- Construction machinery
- Custom-built machines
Direct Injection Diesel Performance
At the heart of the engine is Koop's proven 499cc direct injection diesel engine.
Direct injection improves combustion efficiency, delivering excellent torque while reducing fuel consumption compared with traditional indirect injection engines.
For operators running equipment every day, improved fuel efficiency means lower operating costs over the life of the engine.
Benefits
- High torque output
- Excellent fuel economy
- Commercial-duty reliability
- Efficient direct injection combustion
- Air-cooled simplicity
- Long service life
Electric Start Convenience
Starting heavy-duty diesel engines has never been easier.
The integrated electric start system provides quick, reliable starting with the convenience of a key switch, while the recoil starter offers additional peace of mind when operating in remote locations.
Whether it's powering an irrigation pump in the paddock or a generator on a worksite, you're ready to work in seconds.
Universal 25.4mm Keyed Shaft
Compatibility matters.
The engine features a 25.4mm (1") keyed output shaft, making it suitable for replacing many popular diesel engines and integrating into a wide range of equipment.
The standard shaft size helps simplify installation while giving builders maximum flexibility.
Built for Australian Conditions
Australian farms, workshops and worksites demand equipment that simply gets on with the job.
The Koop KD192FE combines heavy-duty construction, air-cooled reliability and excellent fuel efficiency to provide dependable performance in demanding environments.
Whether operating every day or standing by for emergency use, this engine has been built to perform.
Perfect For
- Water pumps
- Firefighting pumps
- Diesel generators
- Pressure washers
- Hydraulic power packs
- Agricultural machinery
- Construction equipment
- Engine replacements
- Fabrication projects
- OEM applications
Why Buy From Bigger Boyz Toyz?
Every Koop Engine purchased from BBT is backed by:
- Australia-wide delivery
- Genuine spare parts
- Experienced technical support
- Fast dispatch
- Ongoing after-sales support
Reliable engines, backed by people who understand them.
Technical Specifications
| Specification | Details |
|---|---|
| Model | KD192FE (192FAE) |
| Engine Type | Single Cylinder, 4-Stroke, Air-Cooled Diesel |
| Combustion System | Direct Injection |
| Displacement | 499cc |
| Rated Power | 12HP |
| Rated Speed | 3000 RPM |
| Starting System | Electric Start + Recoil Backup |
| Output Shaft | 25.4mm (1") Keyed Shaft |
| Keyway | 6.5mm |
| Fuel Tank Capacity | 5.5 Litres |
| Engine Oil Capacity | 1.65 Litres (SAE10W30 CD Grade or Higher) |
| Compression Ratio | 19.5:1 |
| Fuel Consumption | 275–280g/kWh |
| Cooling System | Air-Cooled |
| Rotation Direction | Clockwise (Viewed from Flywheel) |
| Bore × Stroke | 92 × 75mm |

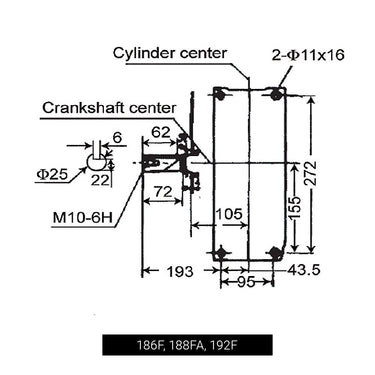

| Dimensions (L × W × H) | 417 × 441 × 494mm |
| Net Weight | 60kg |
Frequently Asked Questions
What equipment can this engine power?
The Koop 12HP Diesel Engine is suitable for water pumps, firefighting pumps, generators, pressure washers, hydraulic power packs, agricultural equipment and a wide variety of custom-built machinery. Always confirm the shaft size, rotation direction and mounting dimensions before installation.
Why choose a direct injection diesel engine?
Direct injection provides improved fuel efficiency, better torque and more complete combustion, helping reduce operating costs while delivering dependable performance under load.
Is this suitable as a replacement engine?
Yes. The standard 25.4mm (1") keyed shaft, clockwise rotation and compact dimensions make it an excellent replacement for many stationary diesel engines used on pumps, generators and industrial equipment.
Does the engine include both electric and recoil starting?
Yes. The KD192FE comes equipped with an electric starter for everyday convenience, while the recoil starter provides a reliable backup when operating in remote locations or if the battery is unavailable.
