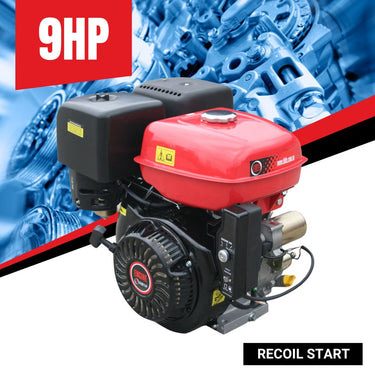

JD 9HP Stationary 4 Stroke Engine Recoil Start
Pickup available at Warehouse
Usually ready in 2 hours
Calculate Your Shipping Cost:
Description

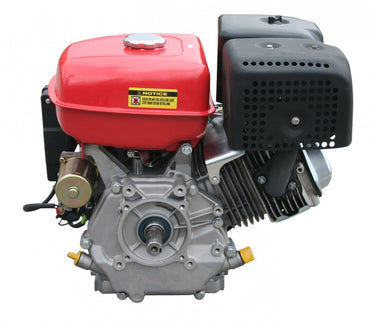

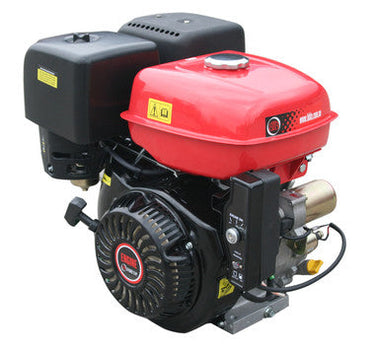

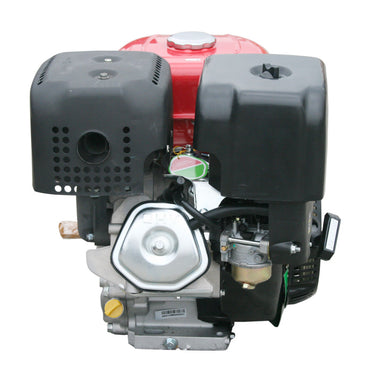

JD 9HP Engine JF270/E
These JD engines come from the 3rd largest engine manufacturer in the world. They have been producing quality reliable engines for more than 60 years and are the engine of choice for many major machinery companies world wide.
Shaft size on this engine is 25mm with a 1/4" or 6.5mm key way.
| Model | JF240/E | JF270/E |
| Engine type | 4-stroke, 25°inclined, single cylinder with Air-cooled | |
| Bore x Stroke (mm/inch) | 73 x 58/2.87 x 2.28 | 77 x 58/3.03 x 2.28 |
| Displacement (ml) | 242 | 270 |
| Compression ratio |
8.2:1 |
|
| Starting output (HP/rpm) | 8.0/3600 | 9.0/3600 |
| Max. torque (N.m/rpm) | 16.7/2500 | 19/2500 |
| Ignition system | Non-contact transistorized ignition (T.C.I.) | |
| Start mode | Recoil | |
| Air cleaner | Semi-dry, oil bath, dual, double silent and cyclone type | |
| Fuel tank capacity (L/gal) | 6/1.6 | |
| Fuel consumption (g/HP-hour) | 290 | |
| Engine oil capacity (L/gal) | 1.1/0.29 | |
| Dimensions (L x W x H) (mm/inch) | 460 x 400 x 445/18.1 x 15.7 x 17.5 | |
| Net weight (kg/lbs) | 25/55 | 26/57.2 |
| Gross Weight (kg/lbs) | 27/59.4 | 28/61.6 |
| Package Dimension (mm) | 560x410x430 | 40kg |
We dispatch orders the next business day from our Wollongong warehouse. With over a decade of experience, we ensure efficient handling, so your order reaches you promptly. No delays, no fuss.
We stock spare parts for every product we sell. Access to parts supports your equipment long-term, making maintenance straightforward. You get reliable products and peace of mind, every time.
Enjoy peace of mind with our warranties: 1-year parts warranty for domestic use, and a 3-month warranty for commercial use on every product.
